NGW-S型行星齿轮减速器

发布时间:2020-07-06 人气:1145 所属分类:NGW行星齿轮减速器 立即咨询

NGW-S型行星齿轮减速器

NGW-S Plantary Gear Decelerator

本产品由弧齿轮锥齿轮传动和行星齿轮传动组合而成,包括两级、三级两个系列的NGW型行星齿轮减速器。主要用于冶金、矿山起重运输入及通用机械设备。其适用条件如下,

高速轴***高转速不超过1500r/min;

齿轮圆周速度不超过13m/s,

工作环境温度为-40'C ~ 45'C;

可正,反向运转(正向顺时针为优选方向)。

The products are made up of arc-taper gear and planetary gear transmission, including two stage, three stage planetary gear reducer.

They are being applied in metallurgy, mining, craning transportation and general mechinery.

The appliable conditions are as follows.

maximum wheeling velocity of high speed axle no higher than 1500r/m.

gear circle velocity no higher than 13m/s.

actuating temperature ranging form-40'c -45'C

right and inversy divedtion allowed.

1.型式与尺寸

1.Type and size

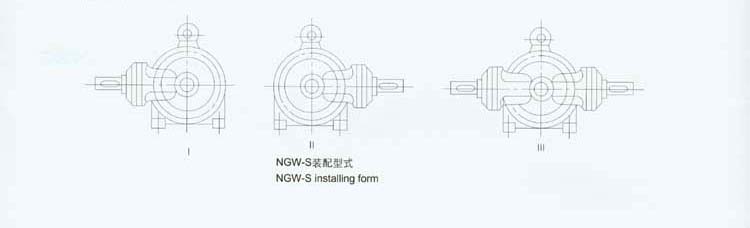

1.1装配型式Isalling form


NGW-S型行星齿轮减速器

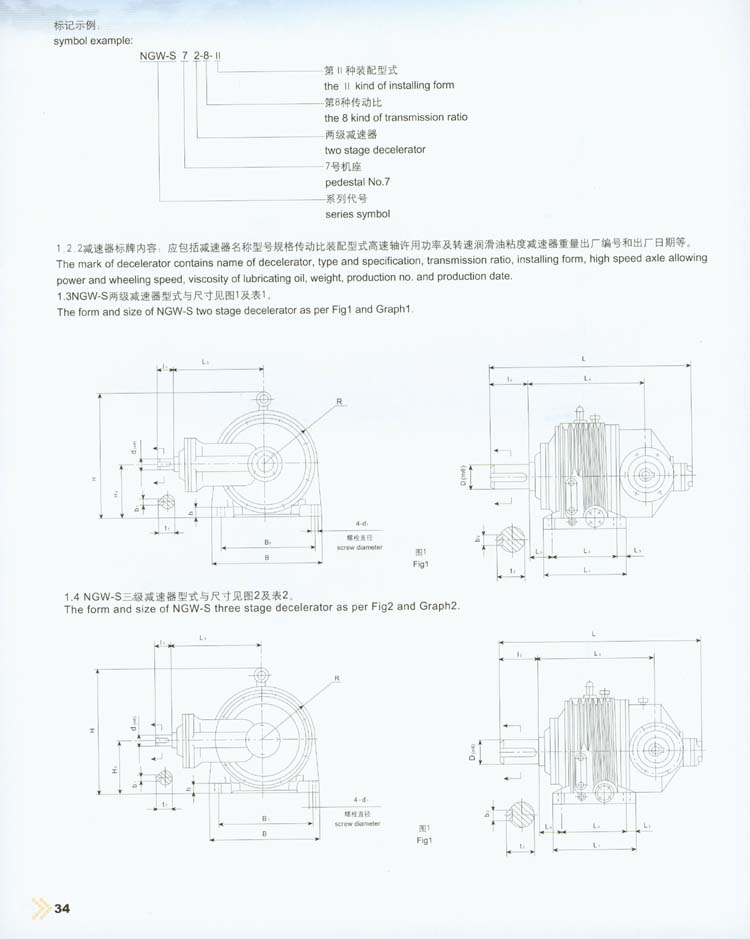

1.2型号与标记

Type and symbol

1.2.1减速器的型号:包括减速器的系列代号,机座号.传动级數。传动比代号.装配型式。

Type of reducer, includes seres symbol, bedestal no.. tansmission progression, no. of transmission ratio, ntaling form.

系列代号:由行星减速器NGW和组合级弧齿锥齿(伞齿) 轮的(伞)字汉语拼音字头S组成,"NGW-S" 代表系列代号。

Series symbol is made up by the head Chinese selling of planetary recucer NGW and combined stage are taper gear,NGW-S represeneates the series symbal.

规格机座号传动级数传动比代号及装配型式用顺序数字表示之一,

Specification: Numbers are aplied to represtant the pedestal no. tasmission progression, no of tasmission ratio and insalling form.


NGW-S型行星齿轮减速器

NGW-S型行星齿轮减速器

NGW-S型行星齿轮减速器

NGW-S型行星齿轮减速器

NGW-S型行星齿轮减速器

NGW-S型行星齿轮减速器
