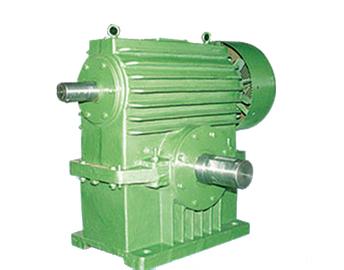

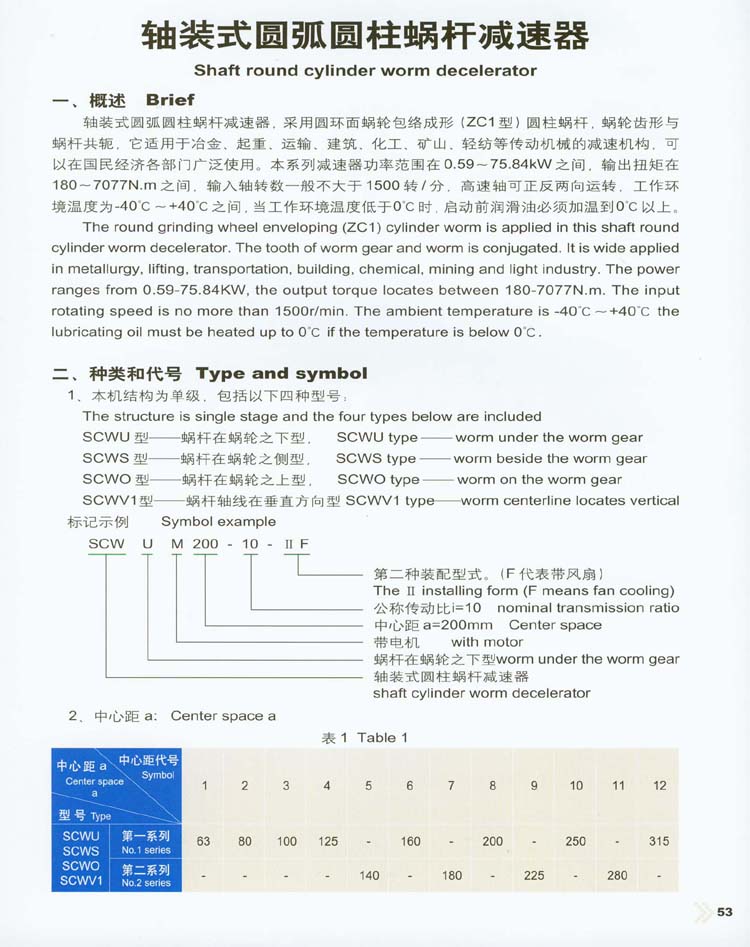

轴装式圆弧圆柱蜗杆减速器
Shaft round cylinder worm decelerator
一、概述 Brief
轴装式圆弧圆柱蜗杆减速器,采用圆环面蜗轮包络成形(ZC1型)圆柱蜗杆.蜗轮齿形与蜗杆共轭,它适用于冶金,起重,运输、建筑,化工、矿山、轻纺等传动机械的减速机构,可以在国民经济各部门广泛使用。本系列减速器功率范围在0.59 ~ 75.84kW之间,输出扭矩在180~ 7077N.m之间,输入轴转数一般不大于1500转1分,高速轴可正反两向运转,工作环境温度为-40'C ~+40'C之间,当工作环境温度低于0"C时,启动前润滑油必须加温到0'C以上。
The round grinding wheel enveloping (ZC1) cylinder worm is applied in this shaft round cylinder worm decelerator. The tooth of worm gear and worm is conjugated. It is wide applied in metallurgy, lifting, transportation, building, chemical, mining and light industry. The power ranges from 0.59-75.84KW, the output torque locates between 180-7077N.m. The input rotating speed is no more than 1500r/min. The ambient temperature is -40"C ~ +40"C the lubricating oil must be heated up to 0'C if the temperature is below 0'C.
