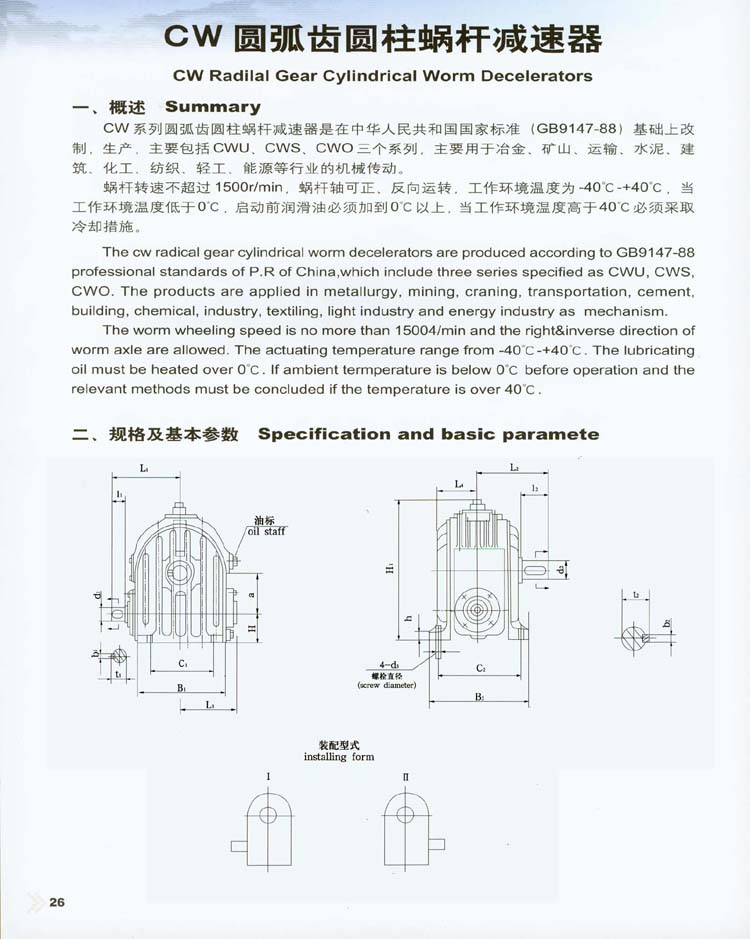

CW圆弧齿圆柱蜗杆减速器
CW Radilal Gear Cylindrical Worm Decelerators
一、概述Summary
CW系列圆弧齿圆柱蜗杆减速器是在中华人民共和国******标准(GB9147-88)基础上改制,生产,主要包括CWU. CWS. CWO三个系列,主要用于冶金,矿山、运输,水泥、建筑、化工,纺织、轻工、能源等行业的机械传动。蜗杆转速不超过1500r/min.蜗杆轴可正,反向运转,工作环境温度为-40°C-+40'C,当工作环境温度低于0'C.启动前润滑油必须加到0"C以上,当工作环境温度高于40'C必须采取冷却措施。
The cw radical gear cylindrical worm decelerators are produced according to GB9147-88 professional standards of P.R of China,which include three series specified as CWU, CWs, CWo. The products are applied in metallurgy, mining, craning, transportation, cement, building, chemical, industry, textiling, light industry and energy industry as mechanism.
The worm wheeling speed is no more than 1 5004/min and the right&inverse direction of worm axle are allowed. The actuating temperature range from -40C -+40C. The lubricating oil must be heated over 0'C. If ambient termperature is below 0'"C before operation and the relevant methods must be concluded if the temperature is over 40C .
