圆弧圆柱双级
蜗杆及齿轮一蜗杆减速器
Round Cyclind Double Stage Worm And Gear-worm Decelerator
一、概述Brief:
ZC1型双级蜗杆及齿轮一蜗杆减速 器符合******标准JB/T7008-93.本威速器主要适用于冶金、矿山、起重.运输.化工，建筑，建材及轻工等行业。减速度器输入轴转速不超过1500/min.减速器工作环境温度为-40C~ +40'C.当工作环境温度低于0"C时，起动前润滑油必须加热到0'C以上，减速器可正，反向运转。
The ZC1 doube stage worm and gear-worm decelerator conform to national stand ard JB/T008-93. The reducers are applied in metallurgy, mining, craning,transportation, chemical industry, building, construction and light industry. The imput shaft rotating speed is less than 1500r/min and the ambient temperature is -40'C ~40'C : please note the lubricating oil must be heated up to 0'C if the temperature is below that.The forwark and backwark are appliable.

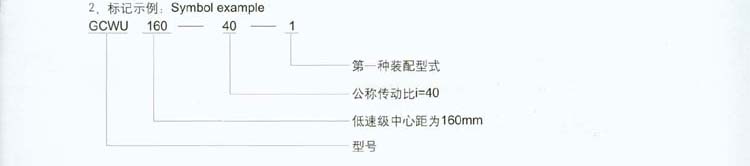

二、型号.标记，基本参数.尺寸Type,symbol,parameters and size
1.型号Type
CCWU-低速级蜗杆在蜗杆之下的双级蜗杆减速器; CCWU-double stage worm decelerator with low-speed worm under worm.
CCWS-低速级蜗杆在蜗杆之侧的双級蜗杆减速器: CCWU-double stage worm decelerator with low-speed worm beside worm.
CCWO-低速级蜗杆在蜗杆之上的双级蜗杆减速器: CCWU-double stage worm decelerator with low-speed worm on worm.
GCWU-低速级蜗杆在蜗杆之下的齿轮一 蜗杆减速器: GCWU-gear- worm decelerator with low-speed worm under worm.
GCWS-低速级蜗杆在蜗杆之侧的齿轮-蜗杆减速 器: GCWU-gear wom decelerator with low-speed worm beside worm.
GCWO-低速级蜗杆在蜗杆之上的齿轮一 蜗杆减速器: GCWU-gear- worm decelerator with low-speed worm on worm.
字母的意义: Word meaning
C--表示蜗杆类 别为ZC1 C-ype of worm ZC1
G表示齿轮: G-gear
W_-表 示蜗杆减速器: W-Worm decelerator
U. S. 0- 分别表示低速级蜗杆位于蜗轮之下，之侧，之上。U. s. O-The low-speed worm under,beside and on the wom gear
