XD、XS型机架(HG21566、21 567-95)

The XD,XS type frame(HG21 566,21567-95)

本系列机架是化工行业***新标准机架.是为搅拌传动装置(HG21563-95)配套的机架。XD型为单支点机架,减速机出轴用DF型联轴器与搅拌轴联接.XS型为双支点机架,减速机出轴用HL型联轴器联接,两支点间用DF型联轴器联接。机架分A型(轴封采用2001、2003、2004.2006或2008型机械密封)和B型(轴封采用2002.2005. 2007型机械密封或506.516.606.616型填料箱)。机架输出端接口可与安装底壳及釜口法兰联接。本系列机架通用性强.由于选用DF联轴器及安装底壳的搁轴装置.所以在不拆除减速机和机架的条件下.在机架的侧面窗口中就可以拆出带短节联轴器.轴承室及机械密封或填料箱。

This series frame which matched with the mixers device (HG21 563-94) is the latest standard of chimical lines. The XD type is a single support frame and the extend shaft of decelerator is coupling with mixer. The xs type is a double supporter shelf and the decelerator's shaft end is coupling with HL type and the two support point is coupling with DF. The shelves have A type (the shaft is sealed in 2001 ,2003, 2004,2006 or 2008 type machinery sealing) and B type (the shaft is sealed in 2002,2005,2007 type machinery sealing or 506.516.606.616 type add-material machine). The output frame junction point could be coupling mounted and the cauldron flange. This series frames have strong common used. We selected DF coupling and the shaft mounted low head. So we could take out the short coupling without removing reducers and shelf bearing housing.

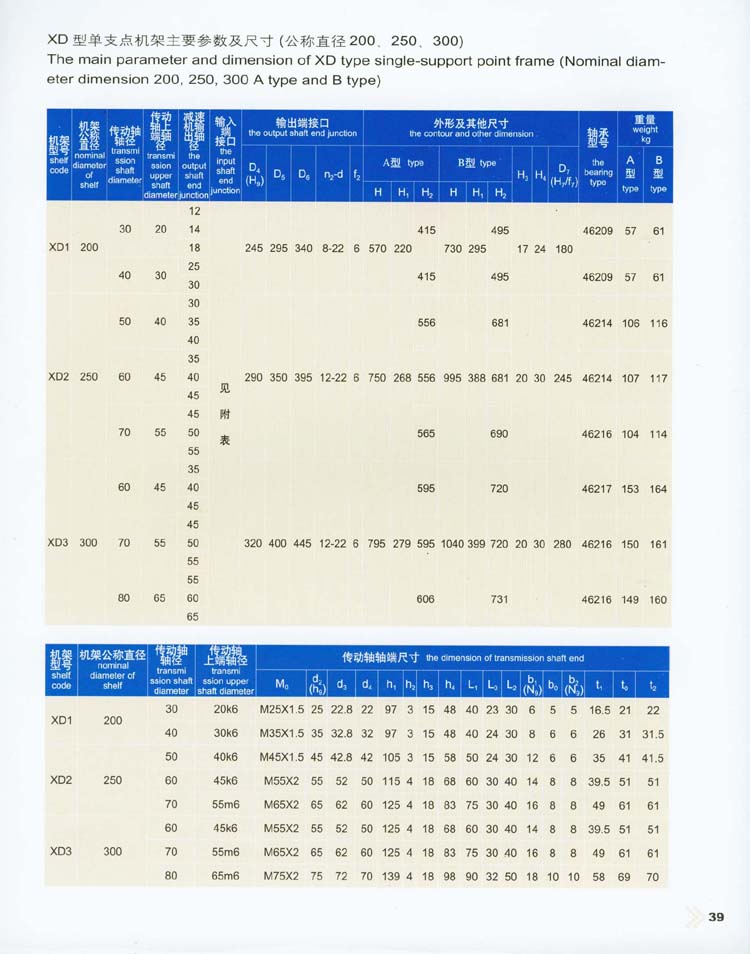

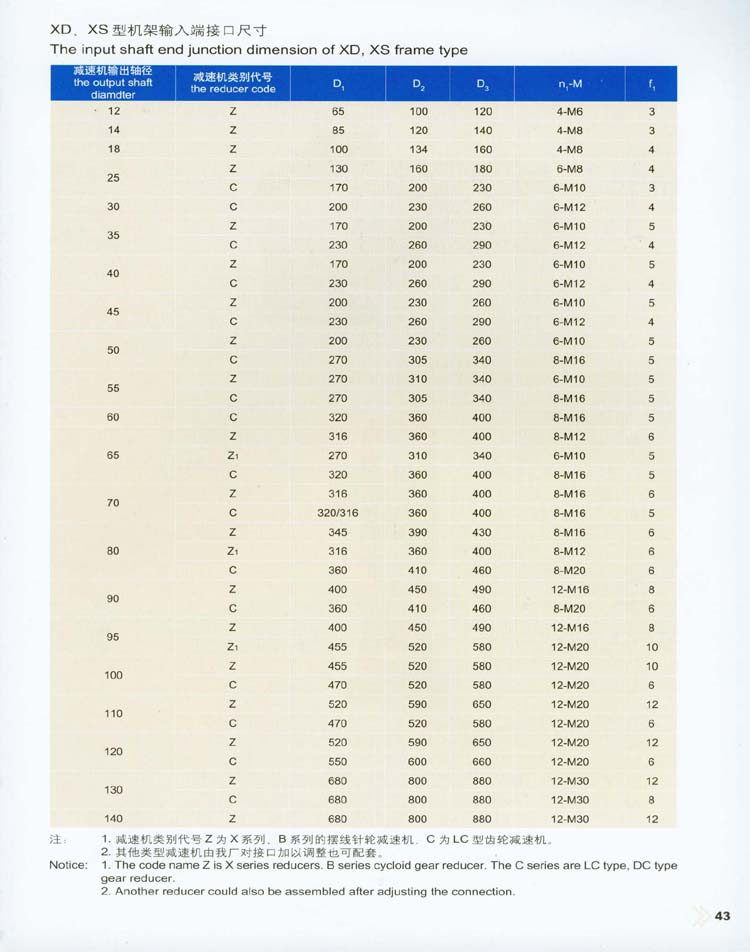

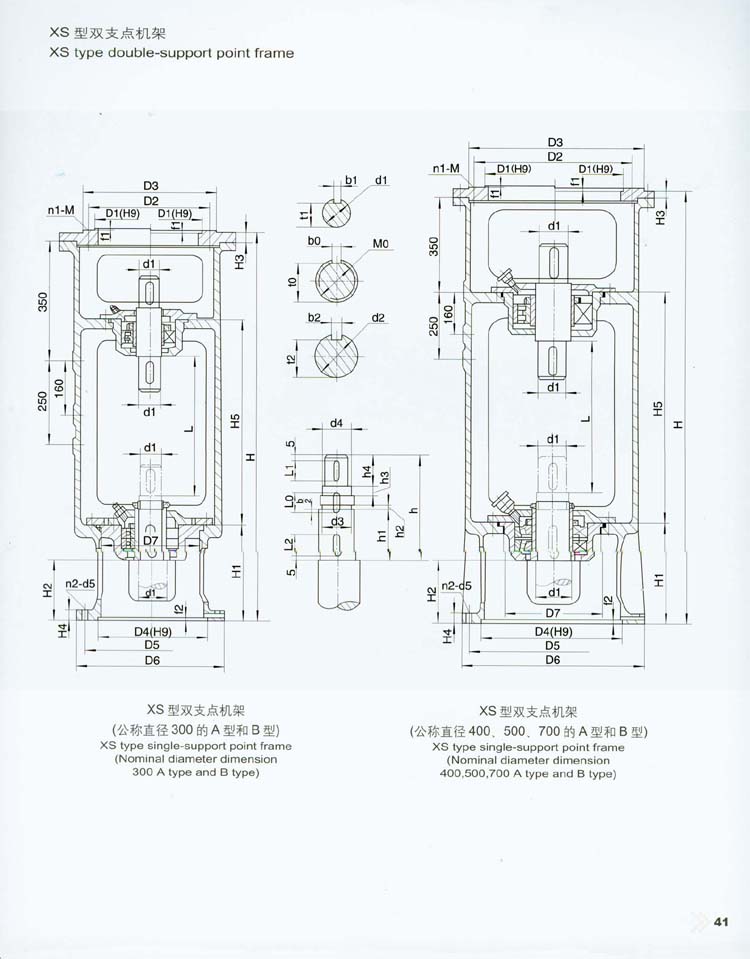

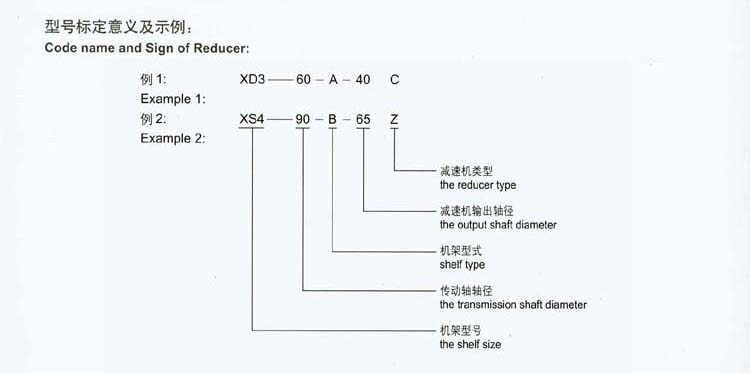

型号标定意义及示例:

Code name and Sign of Reducer:
