摆线针轮减速机
Cycloid Pin Wheel Decelerators
一、摆线针轮减速机的特点
Charactreistic Of Cycloid Pin Wheel Decelerators
摆线针轮减速机是按照JB/T2982-94采用摆线针齿啮合的，少齿差行星传动原理设计而成的一种新型传动机械，已广泛地应用到石油 化工、建筑、冶金矿山、起重运输，纺织印染、工程机械、食品工业、电子电视等各个领域，深受用户的信赖和一致好评。 摆线针轮减速机有如下特点:
The cycloid pin wheel decelerator is a up-dated transmissing machine designed with the cycloid pin wheel clenching and less teeth engagement mechanism. The products have been widely used in Oil and chemical industry, building, mining and metallurgy, cranes, textile, dying, mechanics. foodstuff and electrical industry, and are well acceped by the customers.
The characteristics are as following:
1.传动比大:单级传动比为9-87.双级传动比99-7569.多级串联时传动比可以******:
2.传动效率高:单级传动效率均在90%以上:
3.结构紧凑:体积小，重量轻、高速轴和低速轴在同一轴线上，装拆方便:
4.运转平稳噪音低，能承受过载和冲击;
5.使用可靠，寿命长。
1. Large transmission ratio,for single transmission ratio range is 9-87, and for double 99-7569;
2. High transmission efciency. The single transmissing efficiency is over 90%;
3. Structure well-knitted, small volume, light weight, and high speed axle and low speed axle remain in the same axle, which makes it convenient for installing and disassembling;
4. Low noise when operating, overloading and heavy breaking sustainment;
5. Long service life.

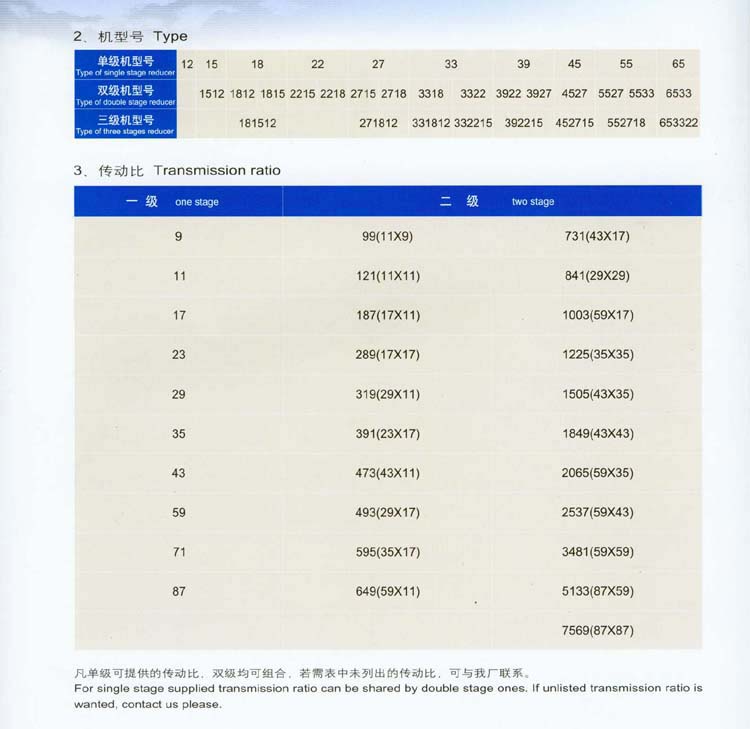

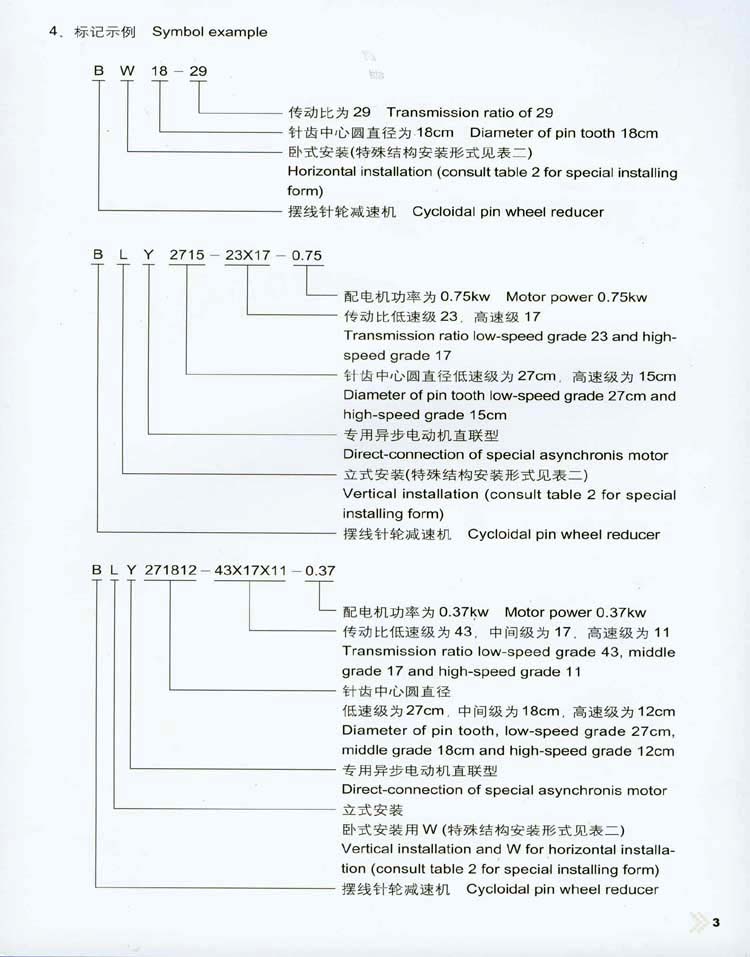

二、摆线针轮减速机的型号、规格
Type And Specification Of Cycloid Pin Wheel Decelerators

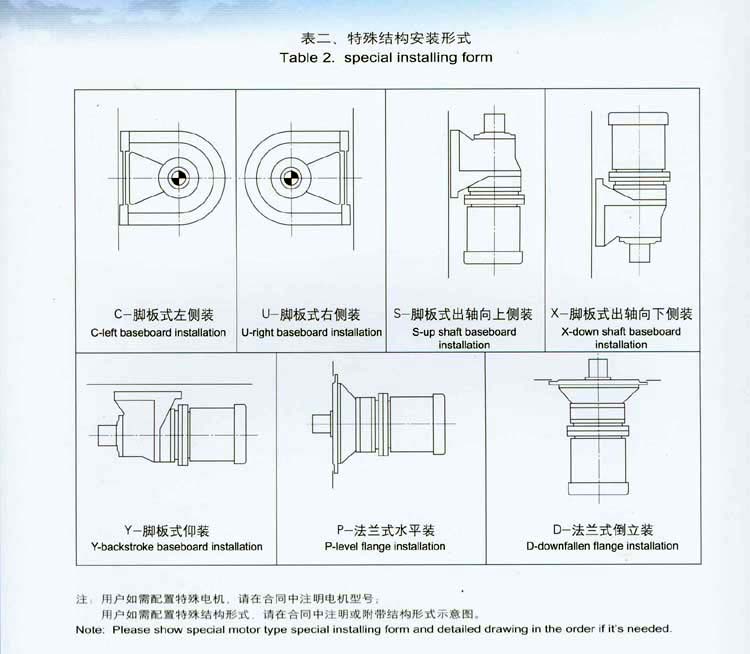

1.型式: BW摆线针轮减速机为双轴型、卧式安装。
BL摆线针轮减速机为双轴型、立式安装。
BWY摆线针轮减速机为专用异步电动机直联型、卧式安装。
BLY摆线针轮减速机为专用异步电动机直联型、立式安装。
1.Type: BW type Cycloid pin wheel decelerators are double axlex type, horizonal installed.
BL type Cycloid pin wheel decelerators are double axlex type, vertial installed.
BWY Cycloid pin wheel decelerators are direct connecting type with special asyn chronous motor, horizontal installed.
BLY Cycloid pin wheel decelerators are direct connecting type with special asyn- chronous motor, vertial installed.
